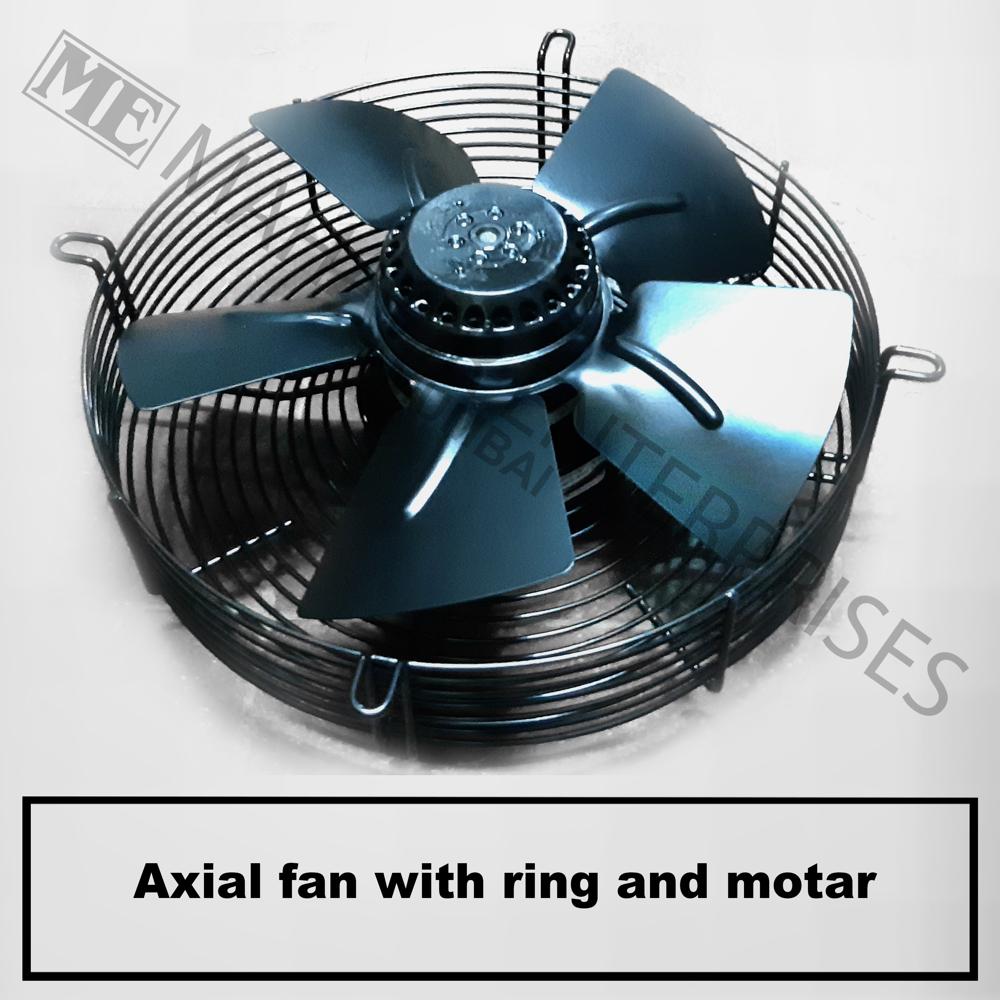

Axial Fan

Name: Axial Fan
Brand: MAHAVIR ENTERPRISES
Price: 2500.0 INR
Availability: InStock

Price 2500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Axial Fan Specification

Connector Type
Screw Terminal

Operating Temperature
-10 to 60C

Surface Finish
Powder Coated

Mounting Type
Wall/Ceiling Mount

Overheating Protection
YES

Insulation Material
Class F Insulation

Shape
Round

Feature
High Air Delivery, Low Noise

IP Rating
IP54

Humidity %
Up to 90% RH

Efficiency
85%

Power Factor
0.95

Product Type
Axial Fan

Application
Industrial Ventilation

Protection Level
IP 54

Frequency (MHz)
50 Hz

Rated Voltage
220 V

Energy Consumption
Low

Output Type
Air Flow

Color
Grey

Dimension (L*W*H)
600mm x 600mm x 200mm

Weight
12 kg

Input Voltage
220-240V AC

Size
24 Inch (600 mm)

Phase
Single Phase

No Of Poles
4

Connection Type
Terminal

Material
Mild Steel

Motor Type
Totally Enclosed

Sound Level
Below 75 dB

Bearing Type
Double Ball Bearing

Cable Length
1.5 Meter

Rotation Speed
1400 RPM

Air Delivery
9000 CFM

Blade Material
Aluminum

Number Of Blades
6

Axial Fan Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

About Axial Fan

* Axial fan rate is various depend upon size.
We are engaged in offering a wide range of quality products to our clients. Our range of all products is widely appreciated by our clients.

Superior Airflow for Industrial Ventilation

Engineered for high air delivery, the axial fan utilizes a 6-blade aluminum rotor paired with a 9000 CFM air output, ensuring effective and consistent ventilation in industrial settings. Its robust mild steel body and powder coating promise longevity, while double ball bearings and a totally enclosed motor enhance reliability and safety during continuous operation.

Whisper-Quiet and Safe Operation

Despite its powerful motor and high output, this fan operates at noise levels below 75 dB, making it suitable for environments where low sound emission is crucial. Overheating protection, IP54 enclosure, and Class F insulation guarantee operational safety, while its ability to perform in temperatures from -10C to 60C and up to 90% humidity provides reliable use across various climates.

FAQ's of Axial Fan:

Q: How is the axial fan installed for industrial ventilation purposes?

A: This axial fan is designed for versatile mounting, allowing installation on either walls or ceilings using the included terminal and screw connector. The fan comes with a 1.5-meter cable to accommodate various positioning needs in industrial spaces.

Q: What benefits does the aluminum blade construction offer?

A: Aluminum blades provide durability while being lightweight, resulting in higher energy efficiency and lower noise. They also resist corrosion, enhancing the fan's longevity, especially in demanding industrial conditions.

Q: Where can this axial fan be effectively used?

A: This fan is ideal for industrial ventilation applications, such as warehouses, manufacturing plants, factories, or any setting requiring high-volume air movement with low noise and energy efficiency.

Q: What is the process for maintaining and cleaning the axial fan?

A: To maintain optimal performance, regularly check and clean the blades and housing for dust buildup. Ensure the double ball bearings remain lubricated, and inspect the motor and electrical connections periodically for safety. Always disconnect power before servicing.

Q: How does the IP54 rating benefit this fan's operation?

A: The IP54 rating ensures the fan is protected against dust ingress and water splashes from any direction, making it suitable for challenging environments where exposure to moisture or dust is common.

Q: What energy-saving features does this fan offer?

A: With a power factor of 0.95 and an efficiency rating of 85%, the fan delivers high airflow using low energy, contributing to reduced operating costs while maintaining effective ventilation.
